TPU Film Production Machine Double Layer Thermoplastic Polyurethane Cast Film Extrusion Line

1. Introduction of Thermoplastic Polyurethane Cast Film Extrusion Line

(1) TPU (Thermoplasticpolyurethanes), hot plasticity TPU elastomer, Thermoplastic Polyurethane Cast Film Extrusion Line is on the basis of the Thermoplastic Polyurethane Cast Film Extrusion Line, through the flow process made into film. Gwell machinery Thermoplastic Polyurethane Cast Film Extrusion Line has been combined with the group's years of equipment manufacturing experience, and at the same time learned from the production experience of many polyurethane TPU manufacturers, to adapt to the market continuous improvement, innovation and gradually reach the industry position. The equipment produces TPU with a width of 1372-1520mm and a thickness of 0.02-3.0mm. One or more single screw extruders can be used for co-extrusion. Each extruder is divided into 8 temperature control zones for accurate temperature control. Maximum output up to 600KG/H, single-layer, A/B/A or A/B distribution mode. It can meet the upper and lower two layers at the same time covered from the membrane, attached cloth. By adopting PLC overall control, only one person can easily control. Key parts disassembly and replacement is convenient, user-friendly. Reserved remote control port can be global remote to achieve synchronous monitoring, which is high cost performance. Products with high transparency, less crystal point, no air bubble.

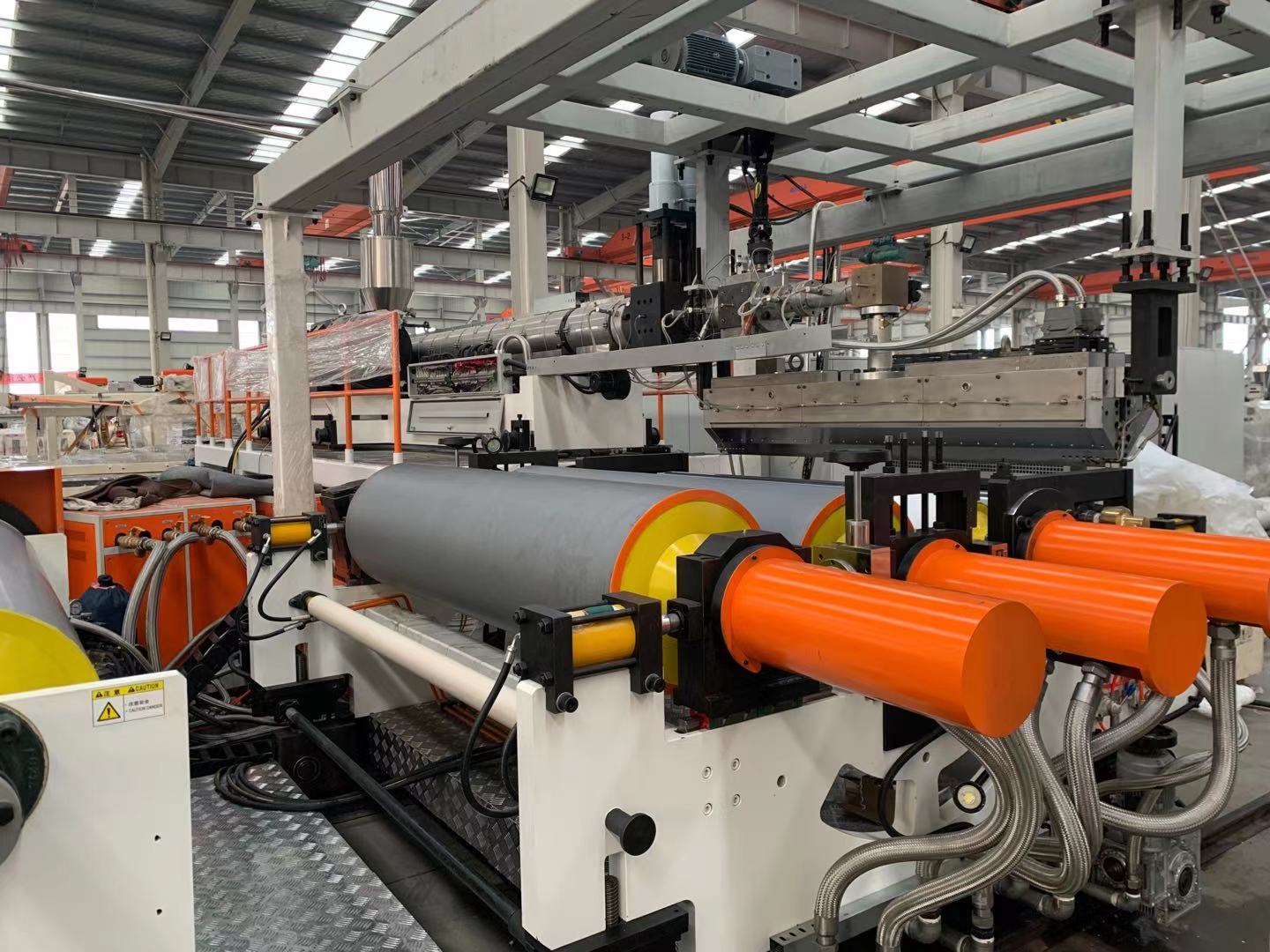

(2) In the Thermoplastic Polyurethane Cast Film Extrusion Line manufactured by Gwell Machinery, the side of the main body of this equipment is equipped with a dehumidifying and drying system and an electrical control system. A vacuum automatic feeder is fixed on the top of the dryer, a single screw extruder is installed on the side of the dryer, and a hydraulic filter is installed on the top of the single screw extruder. The screen changer and the melting pump adopt a through connection, and then connect with the mold through a flow channel. A casting machine is placed at the bottom of the mold. After the casting, there is a five-roller cooling part, and the five-roller cooling is followed by a thickness gauge for thickness measurement. Some auxiliary devices are added after the thickness gauge according to customer requirements, such as corona device and coating. cloth device and so on, and finally the winder.

2. Machine configuration of Thermoplastic Polyurethane Cast Film Extrusion Line​:

CHINA GWELL is a high-tech enterprise dedicated to manufacturing plastic extrusion lines for Film, Sheet, and Profile. The company has two production bases in scenic Taicang of Suzhou and Dafeng of Yancheng, which are very close to Shanghai. The two bases cover more than 56,000 square meters and can produce more than 200 extrusion lines. Relying on the powerful technology and equipment of the group and its orators in spirit, Gwell commits to developing high-tech products and the international market. "Expertise creates customers' values" has always been the company's operating philosophy.


    In recent years, the company's products have been not only chosen by consumers within the domestic front, but also selected by clients worldwide. Our customers in Russia, Spain, Turkey, Iran, Egypt, Bulgaria, Brazil, Indonesia, India, and Brazil have already been enjoying the convenience and values brought by Gwell machines.


    Gwell has a mature team of entrepreneurial management, product design, and technology development. Not only covering manufacturing, commissioning, operation, after-sale service, and technical training, but Gwell is also capable of providing customers with integrated and individual consultancy, and attempts to provide all aspects of high-efficiency, high-quality service, such as feasibility study, layout design, and discussing, just to boost the growth of its clients.

·Company vision: Innovation promotes the company's progress
·Customer vision: Expertise creates customer's values
·Employees vision: Creation realizes staff's values
·Product vision: Technology reflects products' values
