ETFE Cast Film Production Machine,Low Energy Consumption And High
Efficiency
1. Introduction of ETFE cast film production line
ETFE film is one of the fluorine-containing plastics. It has good
light transmittance, self-cleaning properties, insulation
properties, damp heat resistance and aging resistance and is widely
used in various fields. Because ETFE fluoroplastic film contains
fluorine elements, it is prone to thermal decomposition during
thermal processing, which will corrode processing equipment and
molds. Therefore, processing equipment and processes are different
from ordinary thermoplastics. This production line adopts specially
designed equipment and process technology, and successfully
developed a cast extrusion line for fluorine plastic film such as
ETFE.
2. Features of the production line
(1) The extruder made of special high-temperature and
corrosion-resistant steel material realizes the stable extrusion of
fluoroplastics;
(2) Technically cooperate with domestic universities and scientific
research institutions to professionally design screw structure and
die structure according to the particularity of fluorine materials,
and cooperate
Special processing techniques such as forming and winding can
realize the rationalization, industrialization and large-scale
production of fluoroplastic products;
(3) The whole machine configuration, design is practical and
reasonable, PLC touch screen control, whole machine chain control,
convenient and safe.

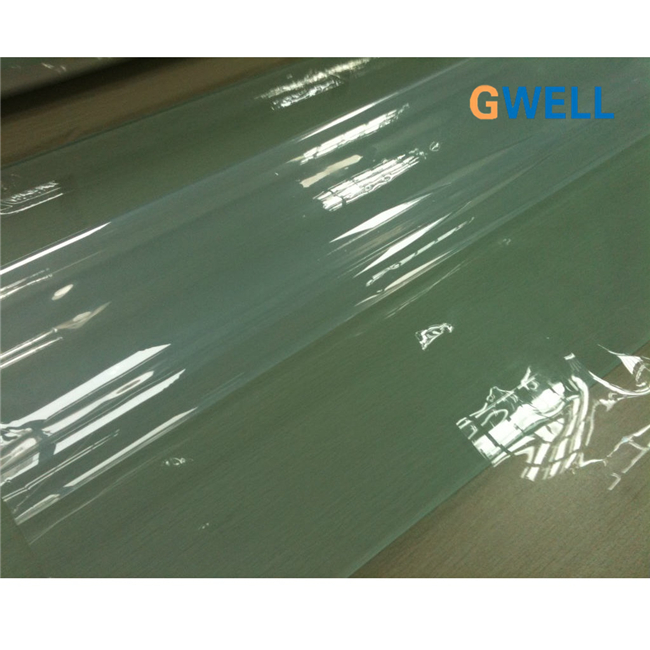

3. Main uses of ETFE film products
(1) The thickness of ETFE film is usually less than 0.20mm, which
is a transparent film. ETFE film can be used not only as a film for
construction and agriculture, but also for automotive windshield
film, antifouling inner and outer packaging materials, battery
separators, adhesive containers, conveyor belts in the food
industry, solar receivers, flexible printed circuit boards, and
computers wires, medical packaging films, etc.
| model | GWS65 | GWS90 |
| Raw materials | ETFE | ETFE |
| Product width | 1000mm--1500mm |
| Product thickness | 0.08-0.2mm |
| Output | 80-120kg/h | 100-200kg/h |
Gwell plastic transparent sheet unit production line absorbs and
digest western country advanced extrusion technology. And its main
parts choose from all over the world (such as screw, barrel,
roller, etc.). The energy consumption of its complete sets of
equipment , intelligent, automation, safety standard, technology
standard, etc., have been at or near the world standard of the
product. This series of products has a number of inventions and
utility model patents so that it replaces imported equipment, and
has a cost-effective advantage. The high-level transparent plate
products are widely used in optics, home appliances, construction
engineering, decoration, furniture, advertising, handicrafts and
other industries and civil industries. Its quality has reached the
world's product performance, and we have a matching team of experts
and process engineers to help users debug, produce high-quality
products.
Gwell Machinery is a high-tech enterprise, committed to providing
customers with plastic sheet, board, film and other extrusion
lines. Gwell can provide turnkey projects, such as stone paper
project, EVA solar film project, PP building formwork
equipment,etc. Gwell has a strong technical equipment strength and
key capacity, committed to high-end product development,
international market development. “Realize customer value" is the
company's long-term business philosophy.The manufacturing bases of
the company are located in Taicang, Suzhou, which is close to the
beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of
Red-crowned crane, and Nantong, the hometown of Education and
longevity in China. It covers a total area about 150,000 square
meters. It has an annual production capacity of more than 200
extrusion lines of various types of sheet and board.
