1. Process of PVC Flooring Production Line
Floor materials such as PVC Flooring Production Line, mixed by high
speed mixer mixing and delivered by rotating conveyor to the
conical twin-screw extruder, then extuded by T die and attach the
wear-resisting layer and printing layer to the product with
specified thickness. Extrusion laminating process can replace the
traditional rolling, laminated and complex process. It is easy to
operate, has low investment cost, and can reduce the labor
intensity of workers. Also it can keep workshop clean, and the
production line will adopt optical sensor detection and alarm, so
it has a high degree of automation.PVC Floor Making Machine
2.Models of PVC Flooring Production Line
| Type of extruder | Conical twin-screw extruder GWC80/156 | Conical twin-screw extruder GWC92/188 | Parallel twin-screw extruder GWP75/36 |
| Width of product | 1000mm | 1000mm | 1000mm |
| Thickness of product | 1.5mm-2mm | 2mm-5mm | 1.5mm-5mm |
| Output | 350kg/h-400kg/h | 550kg/h-650kg/h | 400kg/h-500kg/h
|
3. Introduction of PVC Flooring Production Line

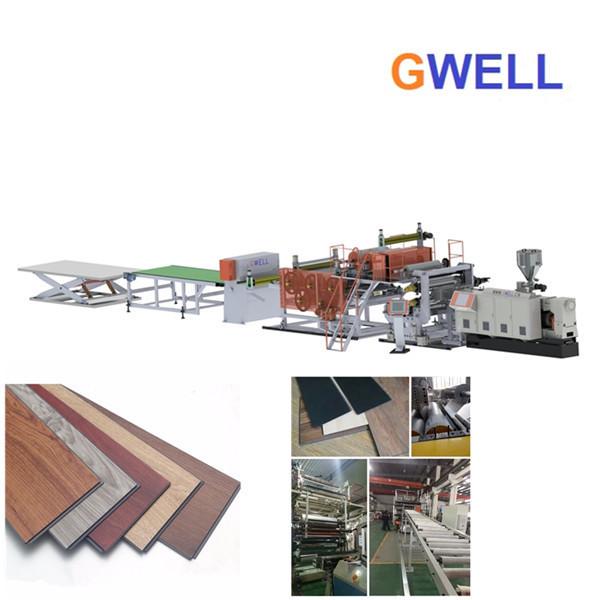

The production process of PVC Flooring Production Line of GWELL
company is:
(1) The raw material will be automatic fed into high-speed mixing,
(2) Then it is automatically fed into the twin-screw extruder,
(3) Then the melt material will be extruded out from the T-die
which is special for plate,
(4) After going through the T-die, the plate will be formed by the
calibration table and cooled by cooling brackets,
(5) Then the board will be through the edge trimming unit, traction
unit, automatic cutting unit, automatic lifting unit, roller
conveyor, etc.
The unit has a compact structure and superior performance.PVC
Flooring Production Line
The screw and barrel are optimized and processed with
high-performance alloy steel, so that the whole machine has the
advantages of uniform plasticization, stable extrusion, high
output, and long life. The main barrel is heated by cast aluminum
heater, cooled by air, and the temperature is controlled by
precision electronic control instrument. The precise shaping and
calendering device, through its good adjustment function, makes the
plate shape excellent. The cutting part adopts a fixed-length
cutting device to ensure the precise length of the plate.
Gwell plastic transparent sheet unit production line absorbs and
digest western country advanced extrusion technology. And its main
parts choose from all over the world (such as screw, barrel,
roller, etc.). The energy consumption of its complete sets of
equipment , intelligent, automation, safety standard, technology
standard, etc., have been at or near the world standard of the
product. This series of products has a number of inventions and
utility model patents so that it replaces imported equipment, and
has a cost-effective advantage. The high-level transparent plate
products are widely used in optics, home appliances, construction
engineering, decoration, furniture, advertising, handicrafts and
other industries and civil industries. Its quality has reached the
world's product performance, and we have a matching team of experts
and process engineers to help users debug, produce high-quality
products.
